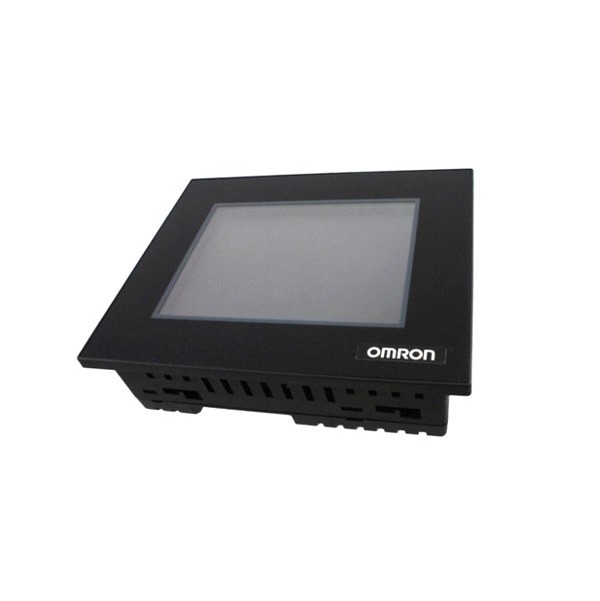

Name: IHM TOUCHSCREEN 5,6'' COLORIDA MODELO: NB5Q-TW01B OMRON
Brand: Sercon
SKU: SAT1521847A
Availability: InStock

IHM TOUCHSCREEN 5,6” COLORIDA MODELO: NB5Q-TW01B OMRON

Fale Conosco

A Série NB de terminais programáveis compactos encontra-se as necessidades básicas para maior visibilidade, simplicidade e custo, e eles vão ainda mais para fornecer um PLC superior compatibilidade, operação fácil e desempenho de custo, e entrega imediata

Especificações

Screen diagonal	5.6 inch
Number of pixels, horizontal	320
Number of pixels, vertical	234
Type of display	TFT
Frame colour	Black
Number of Ethernet ports	1
Number of RS-232 ports	2
Number of RS-422 ports	1
Number of RS-485 ports	1
Number of USB ports	2
Number of colours of the display	65536
Number of grey-scales/blue-scales of display	64
Degree of protection (IP), front side	IP65
Width of the front	184 mm
Height of the front	142 mm
Width of panel cutout	172.4 mm
Height of panel cutout	131 mm
Built-in depth	46 mm
Weight	950 g

Acessórios

	CP1W-CN221	USB Programming cable, A-type male to B-type male, 1.8 m
	NB5Q-KBA04	Accessory HMI, protective sheets for NB5Q (5 sheets)
	XW2Z-200T	Cable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
	XW2Z-500T	Cable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 5 m
